Rounded Inside Aluminum Channel (Structural)

Our rounded inside aluminum channel profiles are meant for structural use with rounded, inner corners for extra strength.

These extrusions are only available in mill finish, in lengths of 20 or 24 feet depending on the profile selected.

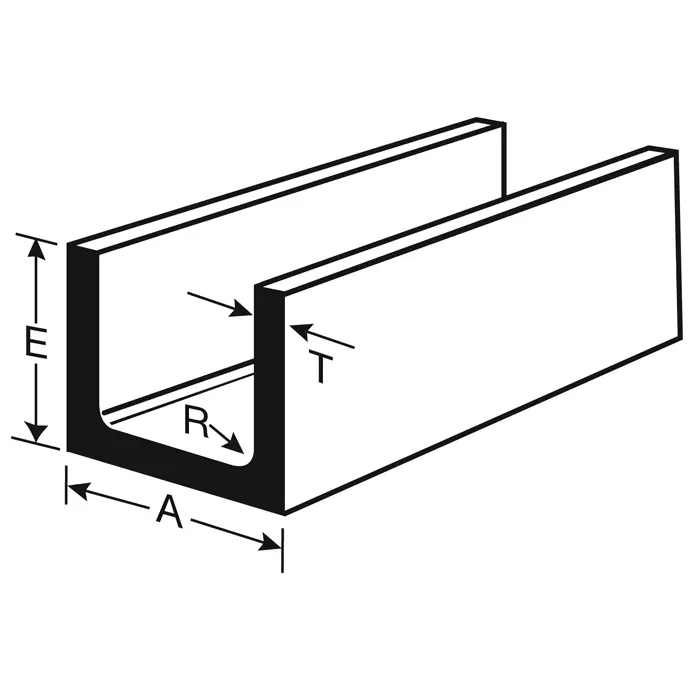

Part #	E	A	T	R	Select Options
IE1729	1 1/2	2	1/8	0.125	IE1729 quantity
IE1754	2	3	1/4	0.188	IE1754 quantity
IE1755	2	4	3/16	0.375	IE1755 quantity
IE1756	1 1/2	3	1/4	0.312	IE1756 quantity
IE1757	2	6	0.281	0.437	IE1757 quantity
IE1760	2	4	1/4	0.25	IE1760 quantity
IE1776	3	8	9/32	0.5	IE1776 quantity
IE1778	2 1/2	6	1/4	0.437	IE1778 quantity
IE1782	3	10	9/32	0.562	IE1782 quantity

NOTE: Minimums may apply to 20 & 24 ft. profiles.

Our standard cutting tolerance is +/-.125” including stock material. If you want something more specific or do not accept this tolerance, your requirement must be forwarded in writing – otherwise we will cut to our standards.

Additional alloys are available. Minimum order quantities apply.
